Eaglemoss 1:8 Scale Aston Martin DB5, Part 18, Bullet Shield

Bond's DB5 had a bullet proof shield in the back that extended to cover the rear window. After assembling the trunk lid, the mechanism for the shield is the next step. This is the first area of this project where I had any significant problems.

First, the mechanism itself is tricky. The idea is that there is a catch for the screen. It is spring loaded and pops up when you slightly push it down. It latches again when you push the extended screen back into the car body (actually the trunk lid on the model, as an aside I think it was in the cat body above the truck lid on the real car, but that's neither here nor there).

There were a couple of issues. One was that the latch did not fully engage with the guides on the shield so it would not release/catch correctly. The screen could slip past it and not catch, or just pop out on its own. Secondly, I felt like the top of the shield, when down, as a little low, below the contour of the car body. I fixed both issues, more or less, by making a new latch, shown in the first image. The upper part is from the kit, the lower one is my replacement. I used a stronger, thicker, steel material and made it longer by about a mm so the shield sits higher. The shorter bent down part I also made longer so it fully engages the guides on the shield. The longer downward bend is where the part mounts. I made that longer too so it will be more secure. This improved the latch significantly.

The second issue was that the shield assembly did not fit the trunk lid. Shown here is the underside of the lid (boot if you like). The two posts are where the hinge will mount (that worked fine), but there are two other posts that hold the shield assembly cover by the shield assembly (in black). The holes for the screws are visible here.

The problem is that the trunk lid posts on mine are significantly closer together than the holes in the shield assembly that they are supposed to go into.

I ended up shaving the sides of the holes in the plastic at a bevel so that the posts could be forced in and squeezed down to line up the screw holes. The trunk and the plastic both flexed some, but I got it in place. Fortunately the plastic they use for these things is very strong.

It works, not well, but it works. It's clunky and gets wedged sometimes, but it's workable.

By the way, yes that license plates also rotate, as on the actual 007 car.

See all the posts for this project here.

Assembly of the trunk lid and the pop-up bullet proof screen in the rear bring me to the end of the parts I currently have on hand. More on the way...

Eaglemoss 1:8 Scale Aston Martin DB5, Part 17, Back Seat

Not much of a back seat in a DB5...

These are the parts making up most of the back seat. There are a couple of other side parts that I don't have yet. It will all need to be covered in the grey leather I'm using.

The odd assembly sequence on this model makes this rather tricky. The seat and the back of the back seat do not actually come together until very late in the build. The seat bottom will be part of the interior assembly that I have already done. The seat back will go into the top and back of the body along with the parcel shelf, and parts of the trunk. The side parts of the seat are yet another separate stage. They do not all come together until the body is assembled. It had better fit. I can't really test this.

The leather will add something between .5 and .75 mm to any contact face of the parts it covers. I have to more of less guess at where to grind down the plastic before covering it, to make things fit when they come together later. The surfaces do not have to be neat and smooth since they are covered.

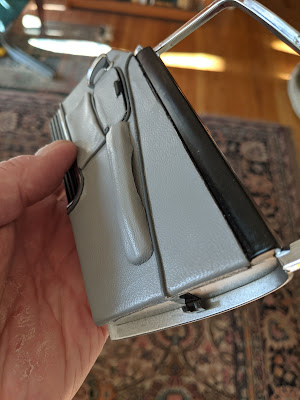

Various sanding and grinding done, the way to do the leather is to secure it down the middle and work outward. I pull the leather and glue it down into each pleat in the plastic.

At the ends I apply glue, then pull the leather very hard over the edge to avoid any extra folds as much as possible. You can pull very hard on this stuff and it will conform. Holding to taught for a few seconds is just enough for the glue to grip. The leather gets thinner of course when stretched, which is also good.

Seat and center bit done. These mount to the interior assembly already built, here.

This is the glue I'm using. Other types of CA glue can be used, as well as other types of glue. I've tried a number of things, this has been the best for leather on plastic, for most contours.

See all the posts for this project here.



Chex Mix for Parrots

 They love it!

68



Eaglemoss 1:8 Scale Aston Martin DB5, Part 16, Left and Right Rear Windows

The windshield and rear window have a nice design using a real rubber gasket under the chrome frame, giving the black trim look. Assembly was easy, the the result is striking.

The car has left and right fuel fills. The kit provides a plastic insert for each side with a gas cap molded in. The fill doors are supposed to open. There is a hinge and a clamp over the back inside the body.

This really doesn't work though as the clamp is far too tight. I experimented with the fit and determined that if I were to alter the part to allow the door to open, it would be really sloppy and loose when opening anyway. So I'm just going to leave it as-is. The fuel fill doors won't open.

On to the two rear quarter side windows. These were ticky.

Firstly, the parts are come in a pack together with no indication of which is left and which is right. However, in fact, all the parts in this assembly differ left-right.

The glass itself has an angled edge, especially apparent at the bottom. The edge matches the angles of the frame. The window tilts inward on the car, at the top. You have to look closely to see this difference.

The two pieces of the latch are also different left and right in a similar way. They are designed to assemble straight through, parallel to the ground as it were, as the window is angled. It is especially difficult to see this angle on the outside part of the latch.

The inside handle of the latch is actually marked 'R' and 'L' in letters so small you'll need magnification to see the letters.

When the outside piece is in place, it will not stay in snug on its own. The inside handle friction fits into it holding both pieces in place. The correct handle faces to the rear of the car with the angle on the end of the handle mirroring the angle of the window. The post on the interior part is keyed, and again, they're marked left and right, but it is very, very easy to miss this.

The fit on the inner and outer parts of the latch are very tight. I wrapped the part in a soft cloth and used parallel jawed watchmaker's pliers the squeeze them together.

Here is the interior and exterior of the rear quarter windows in place. They snap into the upper body easily.

Note the handle's orientation on the inside.

Of course none of this is in the "instructions" at all.

See all the posts for this project here.

Eaglemoss 1:8 Scale Aston Martin DB5, Part 15, Even More Interior

This is a really slow process, but I'm nearly ready to move on the the next stages of the overall build. I want to create a rubber floor mat, as the real car has, in front of the peddles.

This phase also includes the seat of the back seat. I will of course cover this part with leather, but I have to be very careful about the thicknesses. I'll have to shave down the plastic in areas to make sure it fits other parts.

The assembly sequence on this car is odd. The seat of the back seat goes in here, but the back of the seat gets installed in the rear part of the body. The seat comes together finally near the end of the project when the body is assembled.

The leather adds about .5 mm to the thickness of things. I have to be sure parts fit where ever there are mating surfaces. That's hard since I don't yet know exactly how the assembly works.

See all the posts for this project here.

War of the Worlds



Eaglemoss 1:8 Scale Aston Martin DB5, Part 14, More Interior

More interior progress... It's gone well but somehow I have misplaced the bags I was using for a couple of the many screw types used in this model. I had substitutes, but it's still weird. I think Harlan may have run off with them, or flown off.

The floor mats are still in progress separately. They will hide even more flaws once I put them in.

I don't know. It's good, not great.

See all the posts for this project here.

Christmas at Bye & Bye



Trumpeter Ford GT40 1/12 Scale, Part 16

In addition to all the other radiators, there two large oil chillers on each side of the car. I finally got these in place and that nearly wraps up the engine area.

On the right side there is suppose to be a tank of some sort on the firewall above the fuel pumps. I realized examining this part that earlier I had put one of the fuel lines into one of the locator holes for this tank.

Going back and looking at the instructions I found that the exact location where that hose goes is extremely vague. Where I put it looked completely correct at the time.

There are a few rough areas in this kit, and this is one of them. It now appear to me that the hose is supposed to just tuck through the framing below the hole to some out of sight location.

There is a hole there though. The line appears to pass through the bulkhead, rather than slip under it.

I'm not sure what I'll do. I might just leave that tank off. Not a whole lot of people are going to miss it and the whole engine area is crowded with detail.

See all the posts on this project here.

67



Eaglemoss 1:8 Scale Aston Martin DB5, Part 13, More Leather

I've been working on the center console for the DB5. Here it is test for, so I can see how much will be visible (the interior carpets are not in yet). I spend so much time looking at components like this under magnification that I honestly can't tell if it's going OK or not.

The scale carpet is a big sheet of "short" velvet-like material. That's the next challenge.

See all the posts for this project here.

Time Bandits



Eaglemoss 1:8 Scale Aston Martin DB5, Part 12, Right Door Complete

The right door is a little more complicated than the left due to a compartment hiding a car phone (pretty cool for the '60s!). Once assembled it will be pretty hard to reach in there and open the small door for the phone, much less get the phone out. But it's there.

I did a poor job on the leather on this side. Rushed it some I guess. And I managed to cut it incorrectly in a couple places. I did my best to hide the issues. I doubt I could get the stuff off again for a second go at it.

Anyway, on the finished model it should look fine. The thing is huge and there's a lot to look at. And the door, open, can only be seen at an angle.

I also ran out of the piping. I did the two doors and just one of the seats and had less than an inch left. Ordered more... The other seat and the backseat are still to do.

No window on this side. It's all the way down I suppose.

See all the posts for this project here.
